logagg-fs

Fuse file system for logagg-collector. Captures logs when it is written to a file and caches them until the logagg-collector collects and processes the contents.

Features

  • Guarantees capturing every log line.
  • Rotation proof.
  • One time set-up.
  • Supports file patterns; i.e. /var/log/syslog*; rather than fpaths.

Limitations

  • No way of getting logs from files before start-up of the program.
  • Requires a reboot of the machine after set-up is done.

Components/Architecture/Terminology

  • mountpoint: path to the directory where logs are being written (e.g. /var/log).
  • logcache: path to the directory where the logagg-fs program stores all of it's data.
  • logcache/mirror: directory inside logcache path which is mounted to the mountpoint directory path. If logcache path is '/logcache' and the mountpoint is '/var/log', then the directory '/logcache/mirror' is mounted on to '/var/log'.
  • logcache/trackfiles.txt: file inside logcache directory where file-patterns are mentioned that need to be tracked by logagg-fs (eg. '/var/log/syslog')
  • logcache/logs: path to directory where log-files that are cached temprorarily until processed and deleted.

Prerequisites

  • Python => 3.6
  • Expected restart of server after mounting to non-empty directories like /var/log/

Installation

Dependencies

  • Install all dependencies prior to actual installation.
$ sudo apt install libfuse-dev python3-dev python3-pip pkg-config build-essential python3-pip
$ pip3 install setuptools

Install logagg-fs

  • NOTE: Make sure you are a root user.
$ pip3 install git+https://github.com/deep-compute/logagg-collector.git
  • Check installation by the following command
$ logagg-fs --version
logagg-fs 0.3.1
logagg-fs 0.3.1

Set-up/Run logagg-fs for mounting /logcache/mirror to /var/log

Make a directory so that logagg-fs can use it as logcache

# mkdir /logcache/

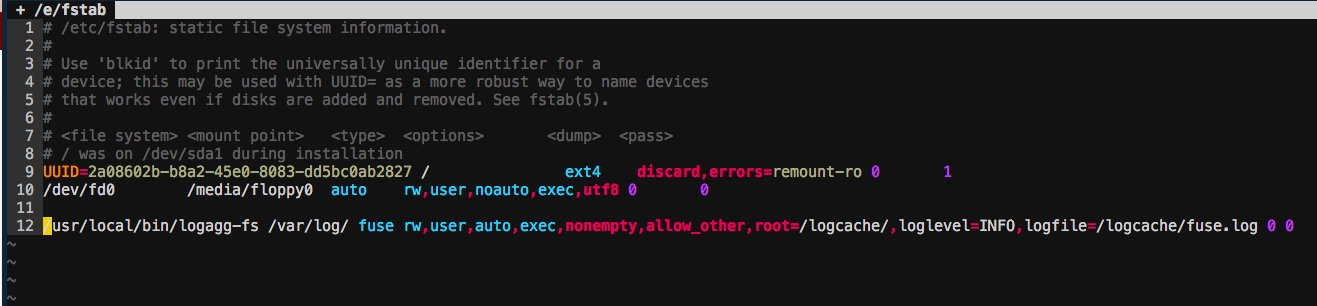

Write configuration to mount /logcache/mirror to /var/log/ directory in fstab

# vim /etc/fstab
# Add the following line to /etc/fstab: "logagg-fs /var/log/ fuse rw,user,auto,exec,nonempty,allow_other,root=/logcache/,loglevel=INFO,logfile=/logcache/fuse.log 0 0"

Command breakdown:
logagg-fs: the path to logagg-fs program
/var/log/: the mountpoint
root=/logcache/: the data/logcache directory creater for logagg-fs
logfile=/logcache/fuse.log: path where logagg-fs is supposed to store own logs


Setting up logrotate for the log file of logagg-fs (Optional)

Create configuration file of logrotate

$ vim /etc/logrotate.d/logagg-fs

Write the following lines in the file

/logcache/fuse.log {
weekly
rotate 3
size 10M
compress
delaycompress
}

Run & Reboot to load the configuration in /etc/fstab

  • IMPORTANT: Copy files all inside mountpoint directory to a temprorary location.
# mkdir ~/temp_logs && cp -R /var/log/* ~/temp_logs/

Mount logagg-fs from fstab configuration

# mount /var/log/

Copy back files to mountpoint directory

# cp -R ~/temp_logs/log/* /var/log/

Reboot to make changes to take effect and running programs to use the mountpoint as storage location for logs

# reboot

Usage

Check if '/logcache/mirror' is mounted properly to '/var/log'

# ls /var/log/
# # The same as:
# ls /logcache/mirror/

# cat /logcache/mirror/test
# cat: /logcache/mirror/test: No such file or directory
# echo "testing.." > /var/log/test
# cat /logcache/mirror/test
testing..

Check caching of log files

# ls /logcache/logs/ # No logs yet
# # Now add the files to be tracked in logcache/trackfiles.txt file
# echo "/var/log/syslog" >> /logcache/trackfiles.txt
# # Takes atmost 10sec to update state
# ls /logcache/logs/ # To see the cached log-files
f5fdf6ea0ea92860c6a6b2b354bfcbbc.1536590719.4519932.log
# tail -f /logcache/logs/* # The contents of the file are being written simultaneously to cached files

  • Just remove the file pattern from /logcache/trackfiles.txt to stop caching of logs

  • To unmount directory

# umount /var/log

Or Delete configuration from /etc/fstab

# reboot
